1 Server Configuration

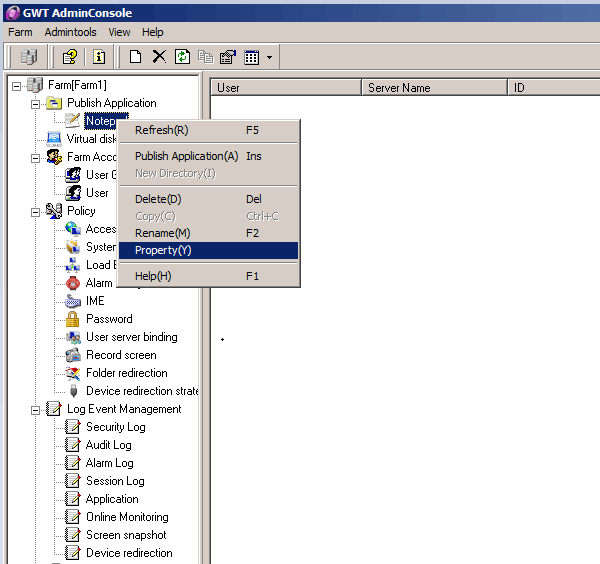

Step one: Open the GWT console, select single sign-on applications to Configure, right click【Property】, as shown below:

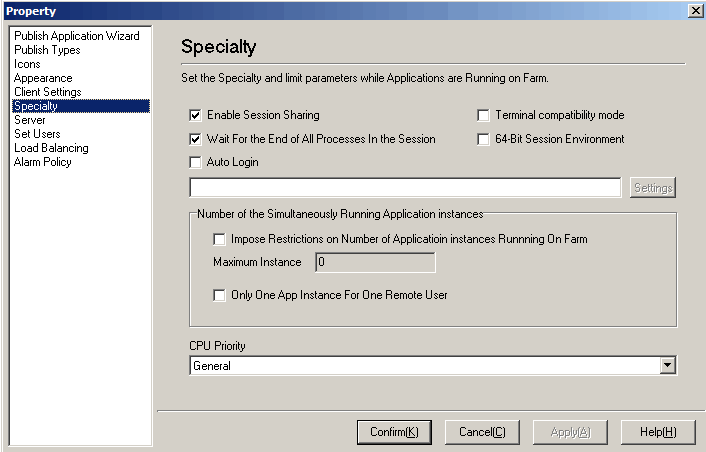

Step two: Select【Application Publishing】, right-click【Property】, open the 【Application Property】, and select【Specialty】, select

【Auto Login】,as shown by the shows:

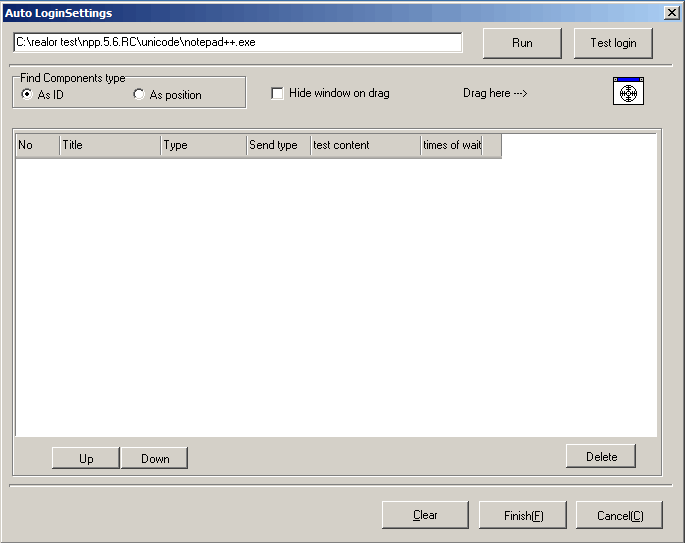

Step three: Click the Settings button, popup the【Auto Login Settings】dialog box, click【Run】 to run the program, to test whether the current

application is normally open. If not open properly, you can select "Publish Application" to examine whether the publishing process and related

settings is right. If you can open, then proceed to the next set, as shown below:

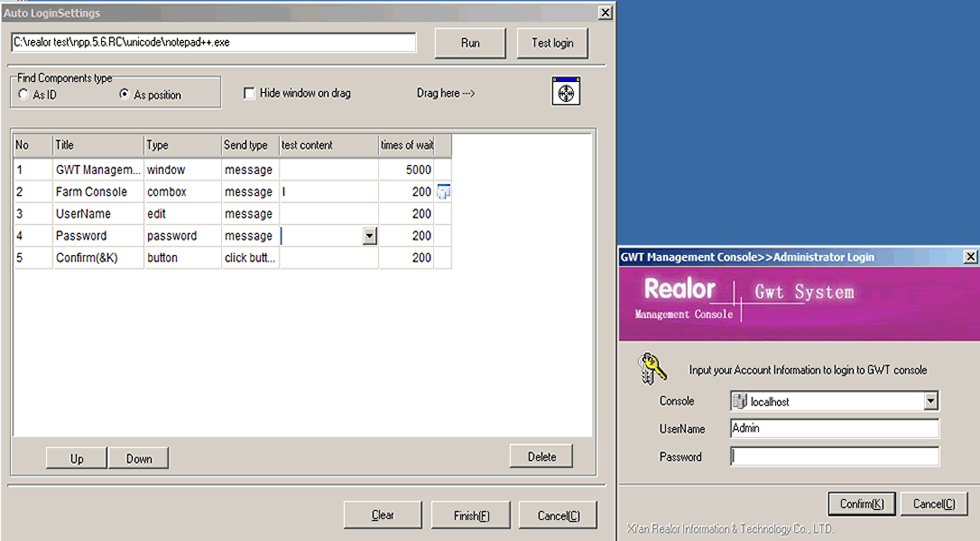

Step four: Click "" the Window extraction tool, and drag it to the application login window to extract form, please pay attention that it must

first extract the entire window frame, and then choose the order to extract normal login window "Combo-box", "Edit box", "Password" and

click "OK". For example, in this case Please set to automatically log GWT Management Console, first focus on "GWT Management Console",

the whole frame login screen, then focus on the "Console" combo control, the "Username" edit control, the "Password" edit control and the

"Confirm" button, as shown below:



Step five: Click【Test Login】, if we can properly open the application, the above configuration is correct.

Step six: Click【Finish】, single sign-on server configuration is complete.

Configuration Interface Item Description:

♦ System administrator can refer to this example for other applications performed single sign-on configuration;

♦ To find components providing two methods, the administrator selects one of them according to the component ID and component location;

♦【Component Title】: Refers to the name of the actual application login form assembly instructions;

♦【Up】and 【Downbuttons is used to adjust the order of each component. It must let the login form with the normal procedures to open

and operate the same order;

♦【Delete】button is used to configure the components one by one to delete;

♦【Clear】button is to completely remove all configuration components;

♦ Wait Time: Set the time spent on the component, it is recommended to keep the default;
