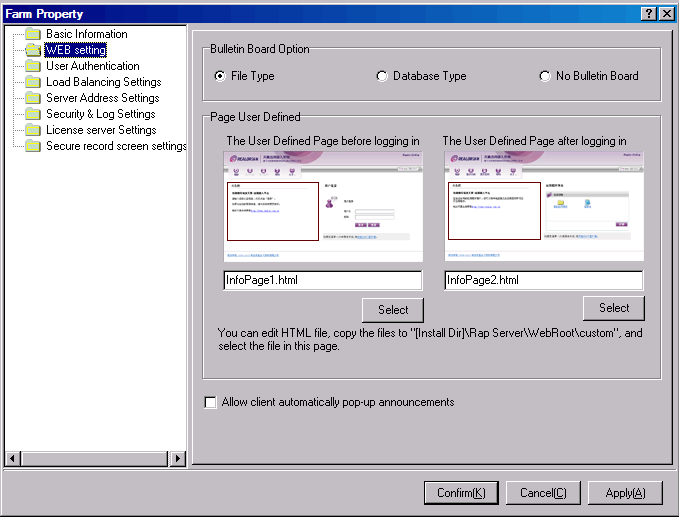

GWT system provides browser access interface and Agent bulletin information access interface functions, WEB setting is used to set the
browser interface under the bulletin board information, bulletin boards option has three modes: file Type, Database Type, No Bulletin Board, the
relevant information as shown below:
Interface Configuration and Item Description:
♦【The User Defined Page before logging in】refers to clients open the web pages and displayed in front of the bulletin are not logged in. If
you select the red box account this bulletin board is bulletin boards after login, or you can set before login or after login.
You can directly modify the way of the relevant documents with the html editor to change the bulletin board content. You need the flexibility to
customize the content published condition applies.Here's how: Open the pages InfoPage1.html or InfoPage2.html under C:\Program Files\
RealFriend\Rap Server\WebRoot\, which can be modified according to the actual situation.

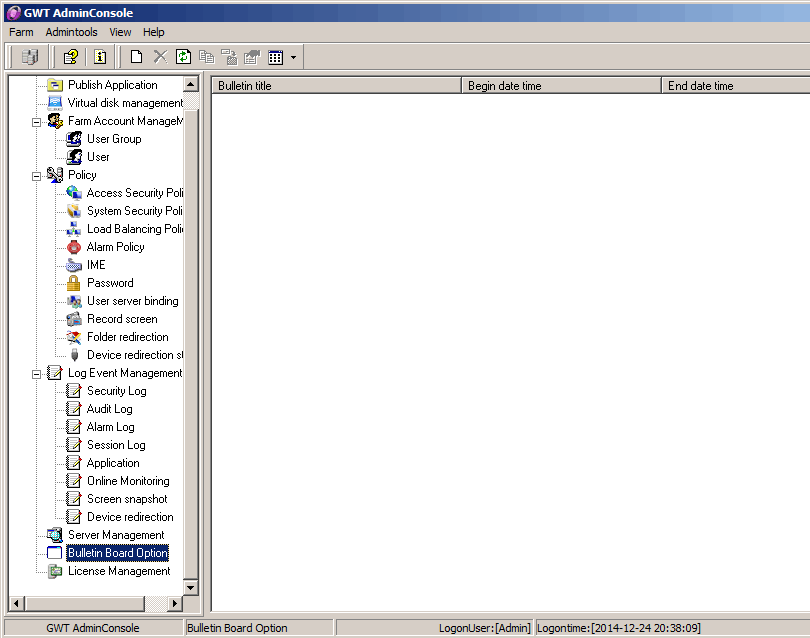

After the contents of the bulletin board written directly the GWT server database, select【Database Type】, GWT Console function tree bulletin
board set will be more, as follows:
2.2.1 New bulletin

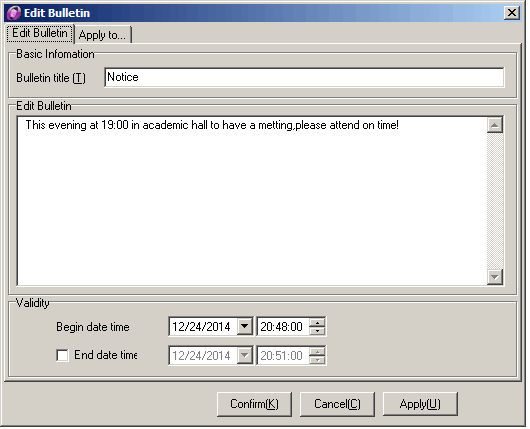

Right click the【Bulletin Board Option】button, select【New bulletin】, set the title and content of the bulletin board, and its validity , as shown
below:
2.2.2 Linked Accounts

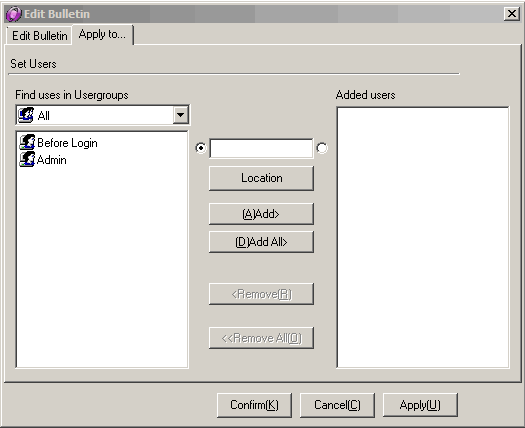

After setting, apply to account, as shown below:
2.2.3 A web page example

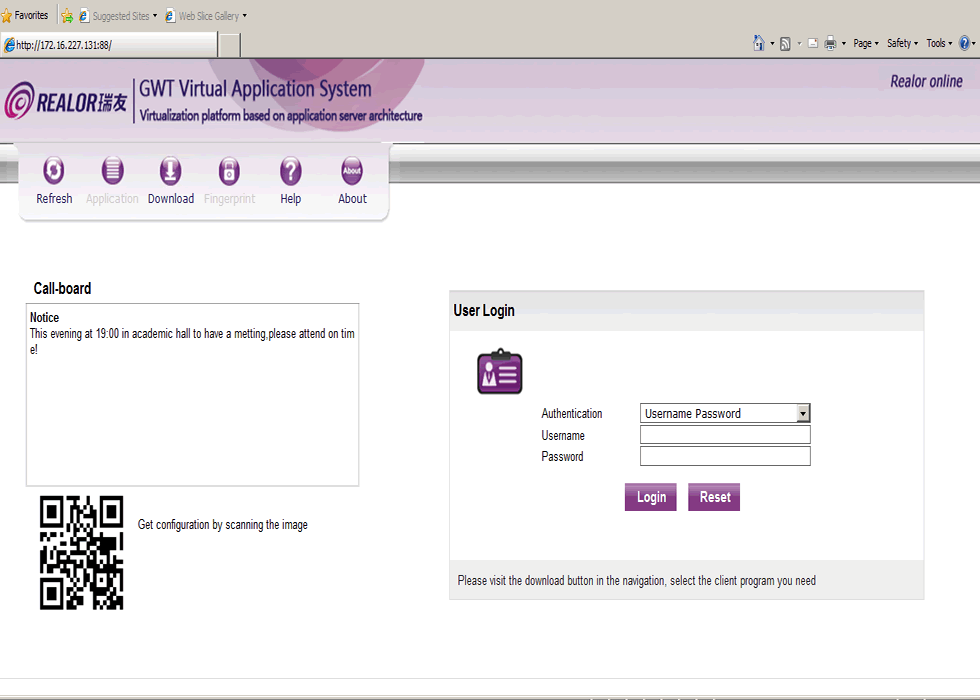

When a user logs in the web page, the display as shown below:
Interface Configuration and Item Description:
Before login refer to open GWT system login page or the client, the state which did not enter a user name and password; after login refers to
input a user name and status login GWT system after the password; therefore bulletin existed two months, bulletin boards can be set
according to the actual situation.

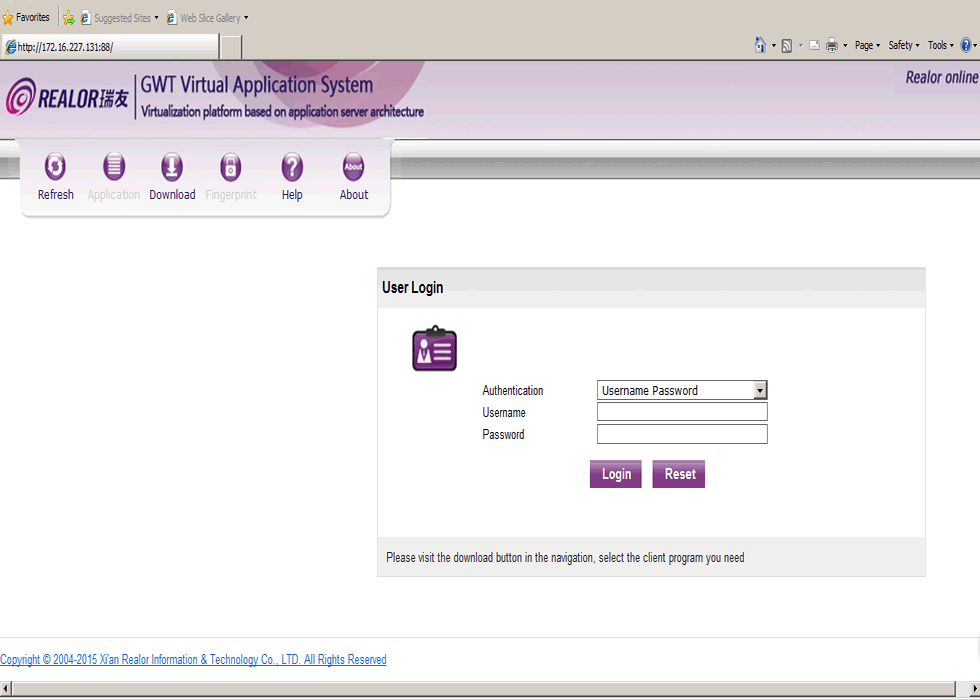

After select No Bulletin Board directly, the bulletin board page will not be displayed before login and after login, in the WEB page to log in.
As shown below:
